C2G Select VGA Video Cable M/M - In-Wall CMG-Rated

(0)No Reviews yet
SKU: VGAMM-SEL-C2G

ITEM ON ORDER

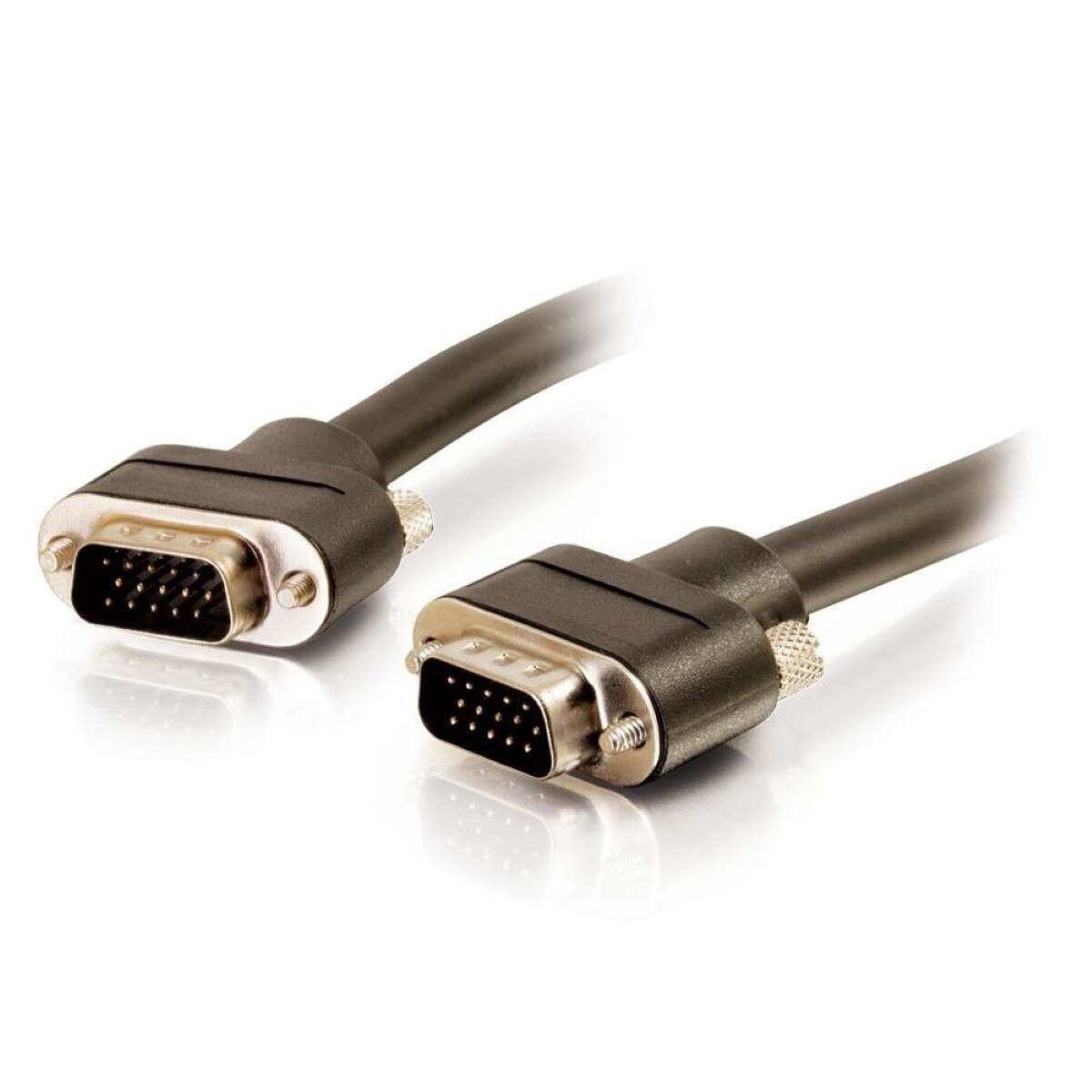

The C2G Select VGA Video Cable is perfect for source to display connectivity for in-home desktop or in-wall commercial applications which require video resolutions of up to QXGA (2048x1536). The CMG rated jacket provides a solution for in-wall applications, while the low-profile, rounded connectors make installing in tight spaces, such as a projector mount pole, easy. This cable is designed to support high resolution video applications over long distances of up to 150ft. All 15 pins are wired providing support for DDC2 (E-DDC) and Extended Display Identification Data (EDID) signals, i.e. communication of the display’s capabilities, ensuring that the content from the source is sent at the optimal resolution for the display.

Technical Information
Cable Diameter: 8.5 mm
Bend Radius: 51 mm
Cable Type: Video
Jacket Material: PVC (Polyvinyl Chloride)
Jacket Rating: CMG Rated, FT4 Rated
Jacket Application: In-Wall Rated
Video Resolution: QXGA (2048x1536)
Video Input Support: VGA
Video Output Support: VGA
Voltage: 30.0 V
Wire Gauge: 30 AWG


Physical Characteristics
Product Color: Black


Dimensions
Cable Length: 1 ft, 3 ft, 6 ft, 10 ft, 15 ft
