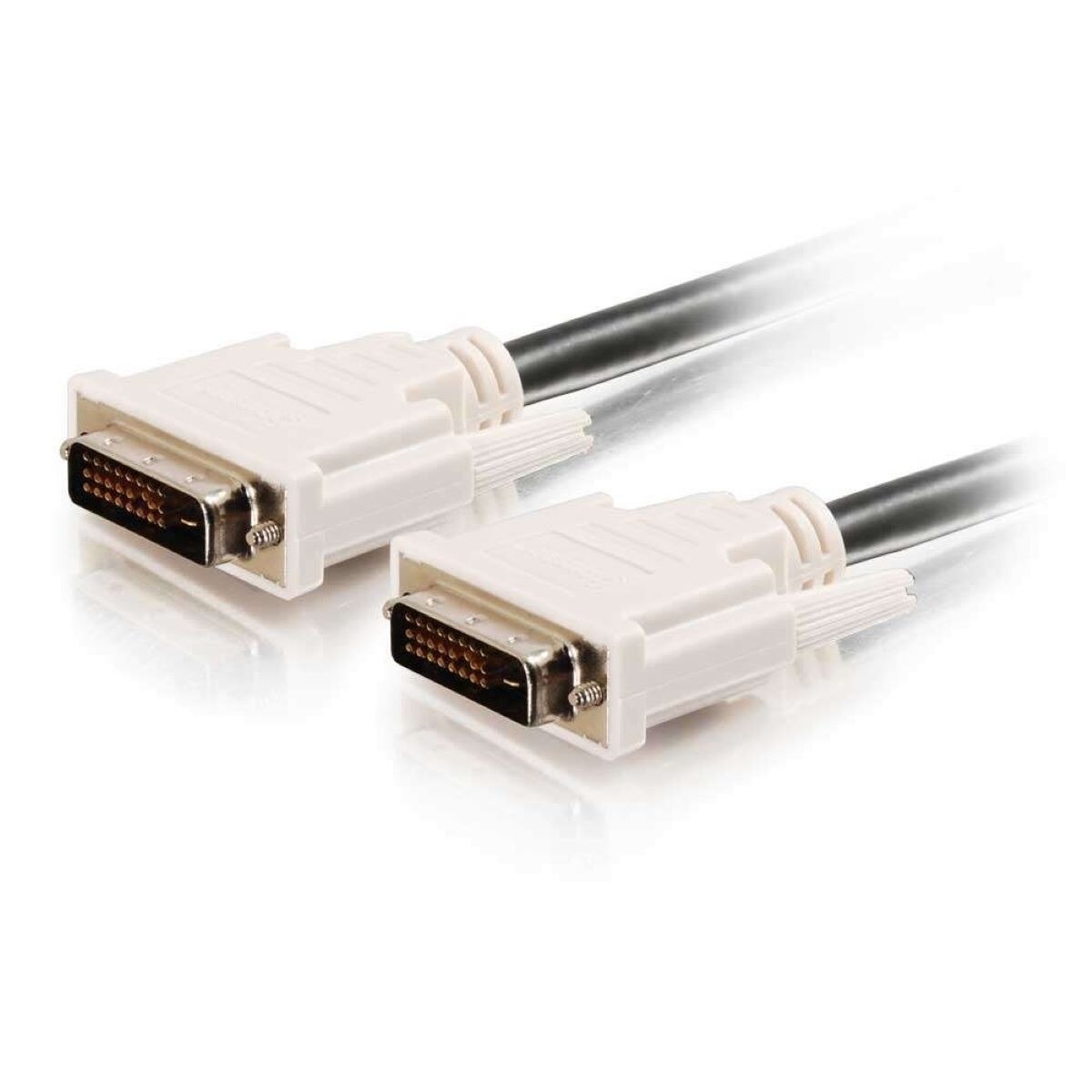

C2G DVI-D™ M/M Dual Link Digital Video Cable
This precision-engineered cable is fully compliant with the DVI standard defined by DDWG (Digital Display Working Group). The DVI-D dual link configuration provides enough bandwidth for resolutions up to 2560x1600 pixels and allows high speed digital video transmission up to 9.9 Gbps. 28 AWG copper conductors are individually insulated in foam-polypropylene to minimize crosstalk, and ensure high speed, error-free transmission.
Tri-shielded undermold with dual foil shield and braid shield protects against unwanted EMI/RFI interference. Gold-plated contacts provide full conductivity with no data loss. PC and Mac compatible cable supports hot-plugging of DVI display devices. PC-99 color-coded: white
Please Note: Does not support analog video; only supports digital video signal.
Technical Information
Cable Diameter: 7 mm
Bend Radius: 86 mm
Cable Type: Video
Data Transfer Rate: 9.9 Gbps
Jacket Material: PVC (Polyvinyl Chloride)
Jacket Rating: Standard / Non-Rated
Cable Length: 1 ft, 2 ft, 3 ft, 5 ft
Connector Type on First End: DVI-D Digital Video - Male
Connector on First End Details: 1 x 24-pin DVI-D Digital Video - Male
Connector Type on Second End: DVI-D Digital Video - Male
Connector on Second End Details: 1 x 24-pin DVI-D Digital Video - Male
Conductor: Copper
Physical Characteristics
Product Color: Black
Weight: 1.50 lb
Compatibility: Flat Panel Display, Digital CRT Display, HDTV, Projector
