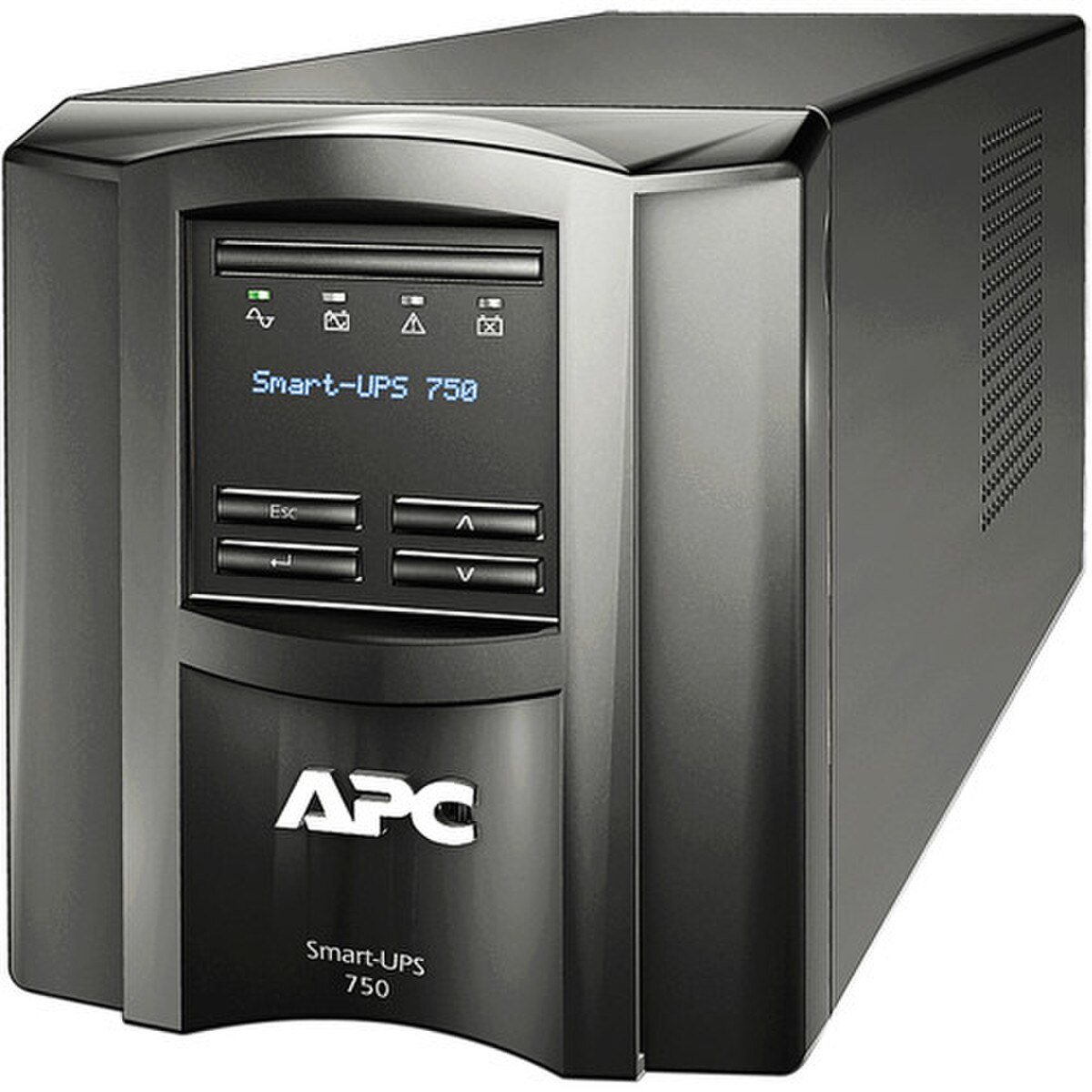

APC Smart-UPS SMT750C Battery Backup & Surge Protector
Designed for servers, point-of-sale, routers, switches, hubs, and other network devices, the Smart-UPS SMT750C Battery Backup & Surge Protector from APC delivers intelligent and efficient network power protection from entry level to scalable runtime. Its sealed lead-acid battery is maintenance-free, has suspended electrolytes, and can be recharged in around 3 hours. Also included is PowerChute Network Shutdown management software, which helps to provide unattended, yet proper shutdowns of network operating systems.
| Specification | |
|---|---|
| Manufacturer | APC by Schneider Electric |
| Model | SMT750C Smart-UPS |
| Product Type | Line-interactive UPS / battery backup |
| UPS Capacity | 750 VA / 500 W |
| Topology | Line-interactive |
| Output Waveform | Pure sine wave |
| Nominal Input Voltage | 120 VAC |
| Input Voltage Range | 110–127 VAC |
| Output Voltage | 120 VAC |
| Frequency | 50/60 Hz ±3 Hz, auto-sensing |
| Automatic Voltage Regulation (AVR) | Yes |
| Battery Type | Sealed lead-acid (SLA) |
| Battery Quantity | 1 battery |
| Replacement Battery | APC RBC48 |
| Recharge Time | Approx. 3 hours |
| Outlets | 6 × NEMA 5-15R |
| Input Connector | NEMA 5-15P |
| Power Cord | 6 ft / 1.83 m |
| Surge Protection | Yes – 540 joules |
| SmartConnect | Yes – Ethernet/cloud monitoring |
| SmartSlot | Yes |
| LCD Display | Yes |
| USB Communication | Yes |
| Serial Communication | Yes – RJ45 serial |
| Software Support | PowerChute Serial Shutdown |
| Cold Start | Yes |
| Full-Load Runtime | Approx. 4.5–5 minutes |
| Half-Load Runtime | Approx. 16 minutes |
| Operating Temperature | 0–40°C / 32–104°F |
| Operating Humidity | 0–95%, non-condensing |
| Noise Level | Approx. 41 dBA |
| Dimensions (H × W × D) | 6.34 × 5.43 × 14.53 in |
| Dimensions (H × W × D) | 16.1 × 13.8 × 36.9 cm |
| Weight | Approx. 27.6 lb / 12.5 kg |
| Form Factor | Tower |
| Rack Mountable | No |
| Color | Black |
| Certifications | UL Listed, ENERGY STAR UPS V2.0, RoHS/REACH |
| Typical Applications | Servers, network equipment, POS, routers, switches, workstations |
